Dual Pedals

Due to high demand for production pedals, Dual pedals are currently only available special order. Please email us at sales@dingotone.com for current price and delivery time.

Create the perfect pedal for your board. You can choose combinations of any two standard negative-ground pedals in the one housing. More combinations will be added as more DingoTone products are released.

Save pedal-board real estate.
– A Dual is about 20% smaller than two singles plus patch cord.
Save patch cords.
– The pedals are hard-wired together inside the housing – one less thing to go wrong!
Save power connectors.
– The Dual Pedal has one power jack serving both pedals.
Combination Characteristics

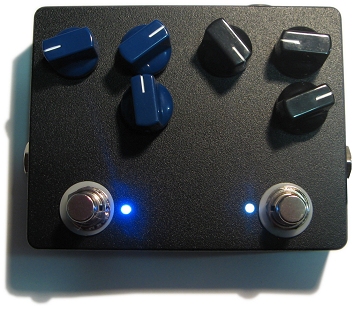

HZD-HZD

 This Dual Pedal gives a pair of clean boost pedals in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use one boost, or the other, or both together cascaded for additional gain.This Dual Pedal can be powered by internal 9V battery or an external power supply up to 24VDC for increased headroom.There is no Order Change switch as both pedals are the same.

BSD-BSD

 This Dual Pedal gives a pair of transparent overdrive pedals in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use one overdrive, or the other, or both together cascaded one into the other.This Dual Pedal can be powered by internal 9V battery or an external 9VDC power supply.There is no Order Change switch as both pedals are the same.

FDD-FDD

 This Dual Pedal gives a pair of distortion pedals in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use one distortion, or the other, or both together cascaded one into the other.This Dual Pedal can be powered by internal 9V battery or an external 9VDC power supply.There is no Order Change switch as both pedals are the same.

BSD-FDD

 This Dual Pedal gives a transparent overdrive and a distortion in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use the overdrive, or the distortion, or both together cascaded one into the other. When cascaded, the Order Change switch selects between:

  • cascaded overdrive into distortion
  • cascaded distortion into overdrive

The BSD-FDD operates from internal 9V battery or external 9VDC only.

HZD-CSF

 This Dual Pedal gives a clean boost and silicon fuzzface in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use the boost, or the fuzzface, or both together cascaded one into the other. When cascaded, the Order Change switch selects between:

  • cascaded silicone fuzzface into clean boost to give EQ and extra level to the fuzzface output
  • cascaded clean boost into silicon fuzzface to give massive drive into the fuzzface

The HZD-CSF operates from internal 9V battery or external 9VDC only.

CSF-BSD

 This Dual Pedal gives a silicon fuzzface and a transparent overdrive in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use the fuzzface, or the overdrive, or both together cascaded one into the other. When cascaded, the Order Change switch selects between:

  • cascaded fuzz into overdrive
  • cascaded overdrive into fuzz

The CSF-BSD operates from internal 9V battery or external 9VDC only.

CSF-FDD

 This Dual Pedal gives a silicon fuzzface and a distortion in the one housing. The pedals are wired in “cascade” (there is only one input jack and one output jack on the Dual Pedal), so you can use the fuzzface, or the distortion, or both together cascaded one into the other. When cascaded, the Order Change switch selects between:

  • cascaded fuzz into distortion
  • cascaded distortion into fuzz

The CSF-FDD operates from internal 9V battery or external 9VDC only.

Favorites are HZD-HZD, CSF-HZD, and for flexible dirt BSD-FDD.

Dual Pedals are made-to-order so various enclosure colors and knob type/colors are available. After ordering a Dual Pedal, please contact us at sales@dingotone.com to discuss your color and knob preferences – we’ll get as close as we can.

Standard “powder coat” enclosure colors are: Natural aluminum; Black; White; Red; Purple; Orange; and Cobalt Blue.

Non-standard colours can also be provided (eg. metallic sparkle), however, please be aware that the paint used is not quite as durable as the powder-coat (that’s chemistry for you!)

Dual Pedals are supplied either unlabeled, or with stamped labels. Let us know your preference.
